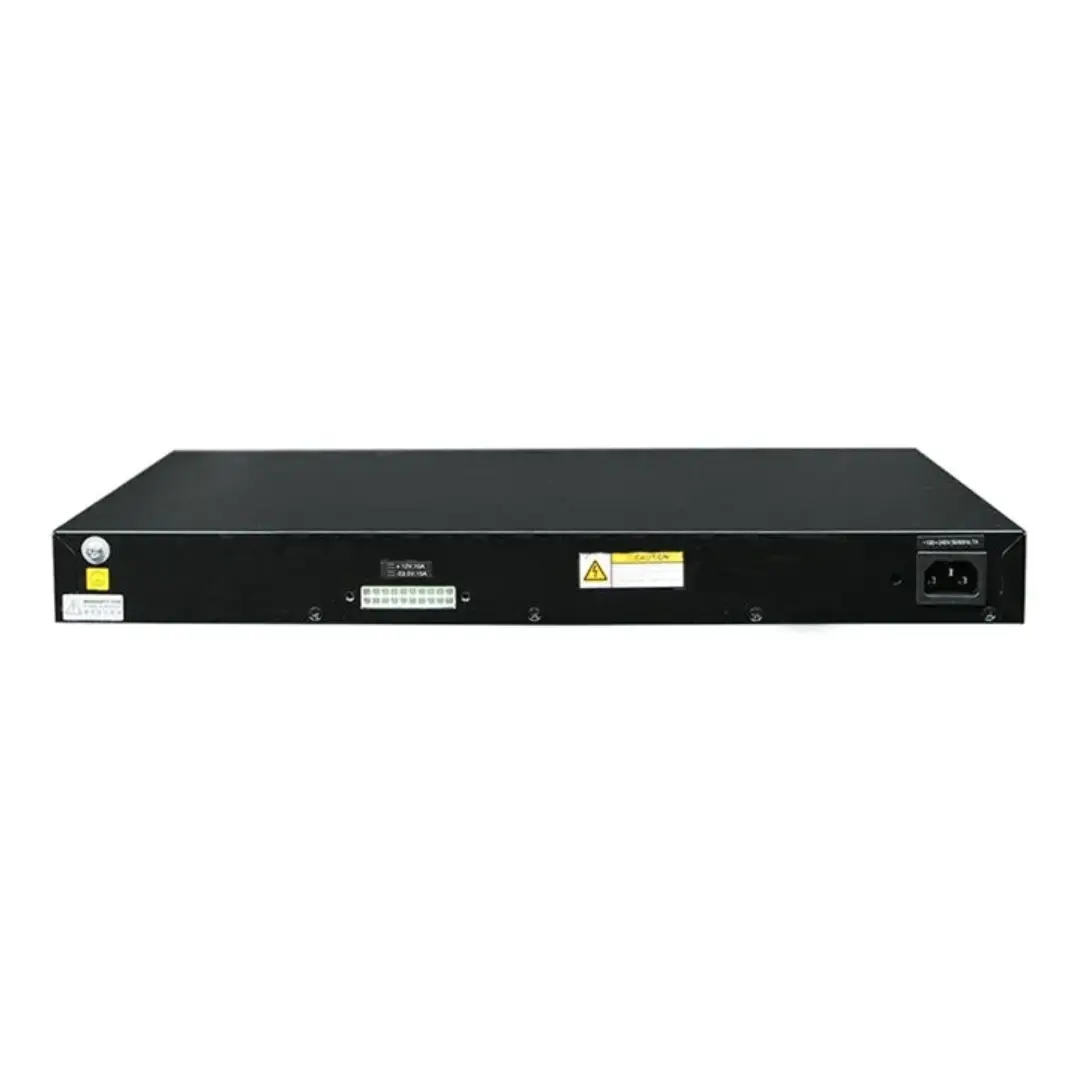

Huawei S5720-52P-LI-AC Layer 3 Switch(Branded used)

Key Specifications

Model	Huawei S5720-52P-LI-AC
Port Configuration	48 x 10/100/1000BASE-T Ethernet ports (PoE and non-PoE)
SFP Ports	4 x Gigabit SFP ports
Layer	Layer 3 routing support
Switching Capacity	Up to 176 Gbps
Forwarding Performance	Up to 132 Mpps
PoE Support	IEEE 802.3af and IEEE 802.3at PoE standards
IPv6 Support	Yes, including IPv6 routing and tunneling
Management Interface	Web-based graphical user interface (GUI), command-line interface (CLI), SNMP
Security Features	ACLs, 802.1x authentication, MAC address binding, etc.
Quality of Service (QoS)	Yes, with traffic prioritization and management

Model

Huawei S5720-52P-LI-AC

Port Configuration

48 x 10/100/1000BASE-T Ethernet ports (PoE and non-PoE)

SFP Ports

4 x Gigabit SFP ports

Layer

Layer 3 routing support

Switching Capacity

Up to 176 Gbps

Forwarding Performance

Up to 132 Mpps

PoE Support

IEEE 802.3af and IEEE 802.3at PoE standards

IPv6 Support

Yes, including IPv6 routing and tunneling

Management Interface

Web-based graphical user interface (GUI), command-line interface (CLI), SNMP

Security Features

ACLs, 802.1x authentication, MAC address binding, etc.

Quality of Service (QoS)

Yes, with traffic prioritization and management

Description

The Huawei S5720-52P-LI-AC Layer 3 Switch is part of Huawei’s S5700-LI series of switches, known for their advanced features and reliability. This switch is designed to provide efficient and secure network connectivity for medium to large-sized organizations. It offers a wide range of advanced features to support various networking requirements.

Key Features:

Port Configuration: The switch features 48 Ethernet ports that support both Power over Ethernet (PoE) and non-PoE devices, along with 4 Gigabit SFP ports for fiber connections.
Layer 3 Routing: Supports Layer 3 routing protocols such as RIP, OSPF, and BGP for efficient routing and network segmentation.
High Performance: Delivers high switching capacity and forwarding performance, making it suitable for bandwidth-intensive applications.
Power over Ethernet (PoE): Provides PoE support on Ethernet ports, enabling the power supply to IP phones, IP cameras, and other PoE-enabled devices.
Security Features: Offers comprehensive security features including ACLs, 802.1x authentication, and MAC address binding for network security.
IPv6 Support: Supports IPv6 routing and IPv6-to-IPv4 tunneling to prepare your network for the future.
Quality of Service (QoS): Provides QoS features to prioritize and manage traffic for better application performance.
Management Options: Supports various management options, including web-based graphical user interface (GUI), command-line interface (CLI), and SNMP for easy configuration and monitoring.
Redundancy and High Availability: Offers link aggregation, VLAN-based gateway redundancy, and device-level redundancy for improved network reliability.
Energy Efficiency: Designed with power-saving features to reduce energy consumption and operating costs.(Huawei S5720-52P-LI-AC)
