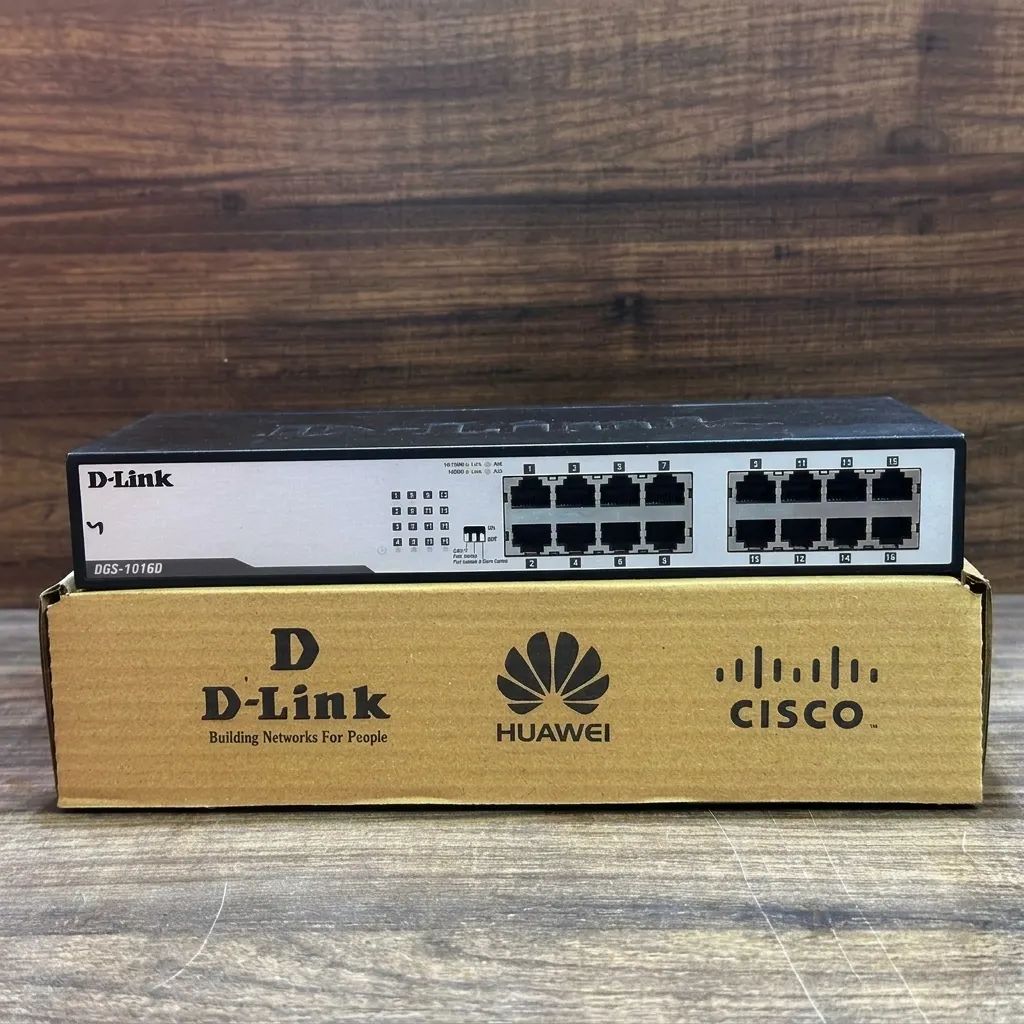

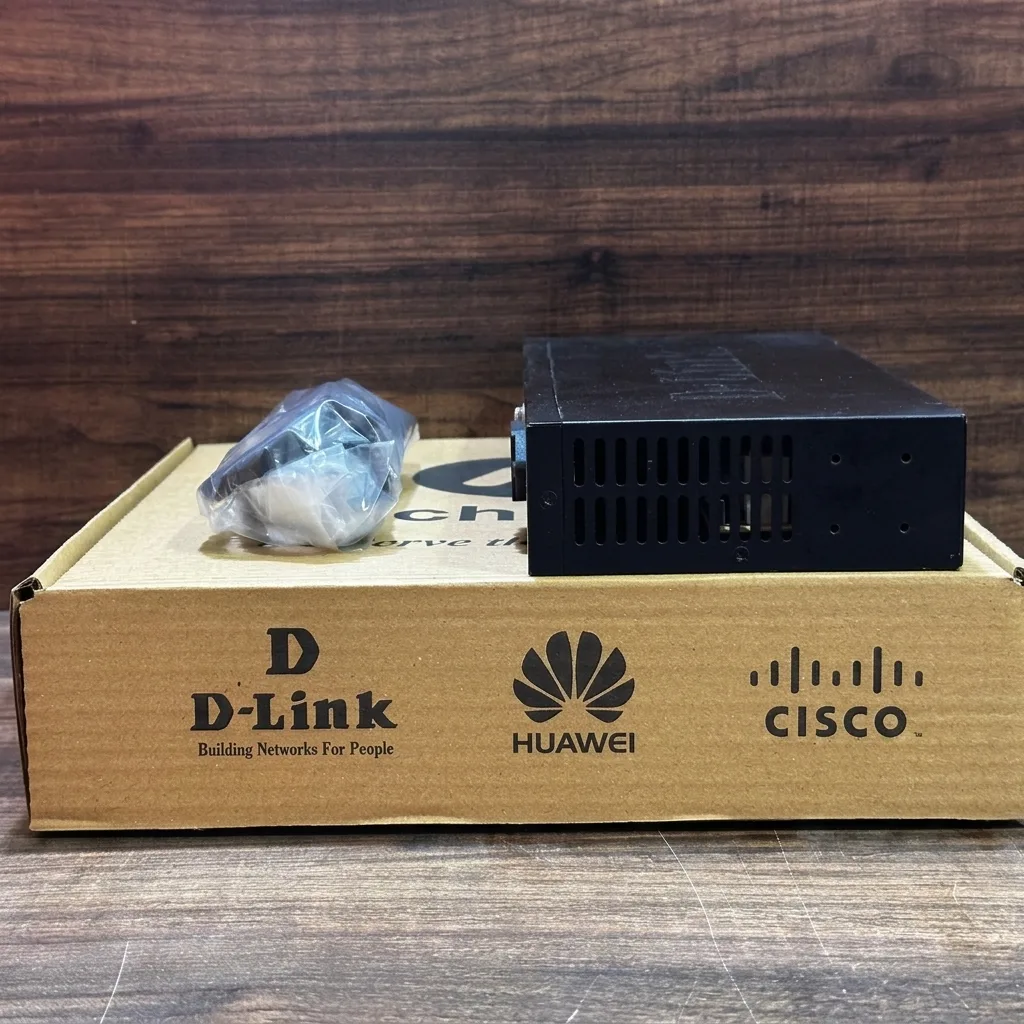

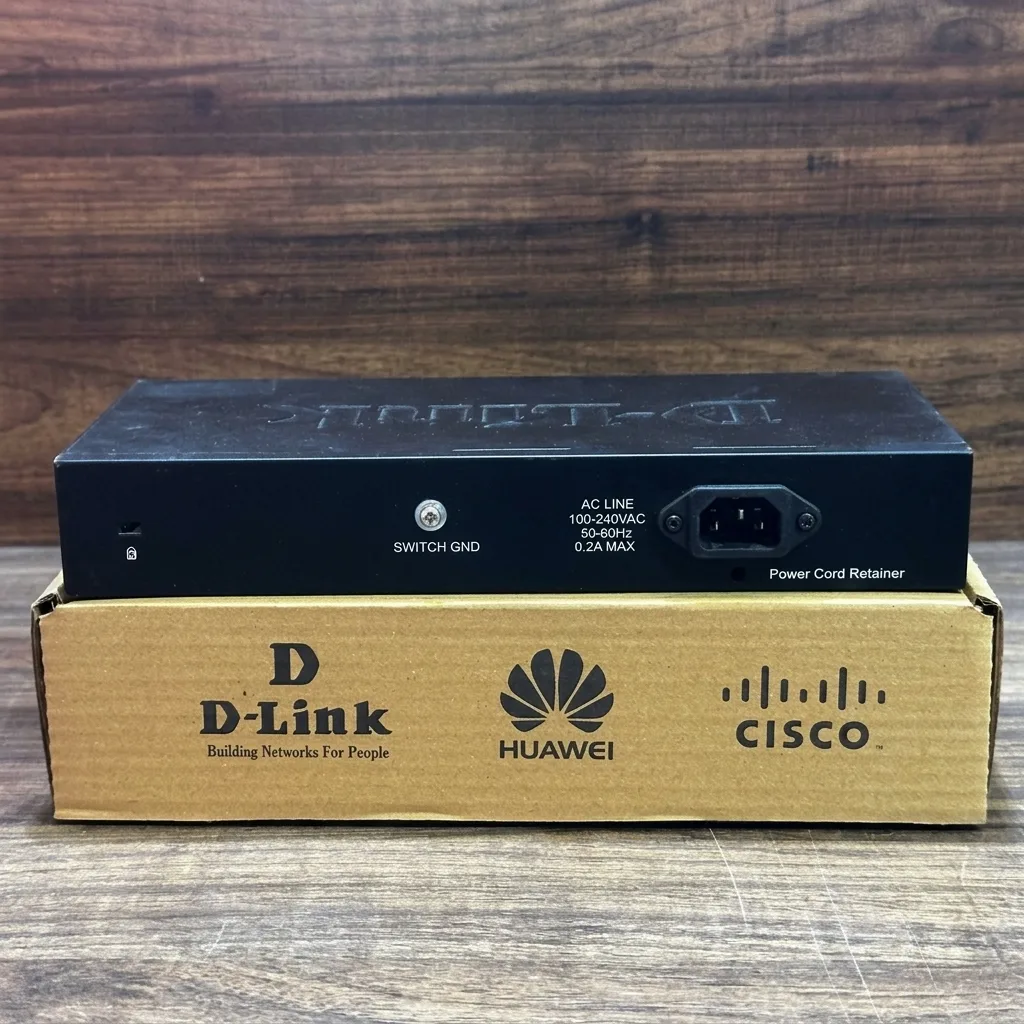

D-Link DGS-1016D Ethernet Switch 16 Port Unmanaged network

Key Specifications

Number of Ports	16 Gigabit Ethernet ports
Switching Capacity	32 Gbps
Forwarding Rate	23.8 Mpps (million packets per second)
Layer	Layer 2 (Data Link Layer)
Auto-Negotiation	Yes, for speed and duplex on all ports
Auto-MDI/MDIX	Yes, supports automatic detection of cable type
Flow Control	IEEE 802.3x flow control for full-duplex mode
Jumbo Frame Support	Yes, for larger data packets
Green Ethernet Technology	Yes, for energy-efficient operation
Fanless Design	Yes, silent operation without cooling fans
Housing Material	Metal housing for durability

Number of Ports

16 Gigabit Ethernet ports

Switching Capacity

32 Gbps

Forwarding Rate

23.8 Mpps (million packets per second)

Layer

Layer 2 (Data Link Layer)

Auto-Negotiation

Yes, for speed and duplex on all ports

Auto-MDI/MDIX

Yes, supports automatic detection of cable type

Flow Control

IEEE 802.3x flow control for full-duplex mode

Jumbo Frame Support

Yes, for larger data packets

Green Ethernet Technology

Yes, for energy-efficient operation

Fanless Design

Yes, silent operation without cooling fans

Housing Material

Metal housing for durability

Description

The D-Link DGS-1016D is a reliable and easy-to-use unmanaged Gigabit Ethernet switch designed for both home and small office environments. It provides seamless and high-speed connectivity to a variety of devices, including computers, printers, network-attached storage (NAS), and more. This switch offers plug-and-play simplicity, making it an excellent choice for users who need to expand their network without complicated configuration.

Key Features:

1. 16 Gigabit Ethernet Ports: Provides 16 high-speed Gigabit Ethernet ports for fast and reliable wired connections.
2. Unmanaged Design: No configuration is required, offering true plug-and-play functionality for hassle-free setup.
3. Auto-Negotiation: Automatically detects the speed and duplex of connected devices and adjusts accordingly for optimal performance.
4. Auto-MDI/MDIX: Supports Auto-MDI/MDIX on all ports, eliminating the need for crossover cables and simplifying cable management.
5. Full Wire-Speed Forwarding: Ensures that each port operates at its maximum speed, delivering high-speed data transfers without bottlenecks.
6. Energy-Efficient: Incorporates D-Link Green Technology, which reduces power consumption by adjusting power to unused ports and putting them in sleep mode.
7. Rugged Metal Housing: Features a durable metal housing for long-term reliability and durability.(D-Link DGS-1016D)
8. Fanless Design: Operates silently without cooling fans, making it suitable for quiet office or home environments.
9. Desktop or Rack-Mountable: Can be used as a desktop switch or mounted in a standard 19-inch rack for flexibility in deployment.
10. Compact Size: Its compact design saves space and fits easily on a desk or in a network rack. (D-Link DGS-1016D)
11. LED Indicators: LED lights indicate the status of each port, helping with diagnostics and monitoring.
12. Quality of Service (QoS) Support: Prioritizes network traffic to ensure that critical data is given precedence for a smooth network experience.
13. Auto-Sensing Ports: Automatically detects the network speed of connected devices and adjusts accordingly (10/100/1000 Mbps).
