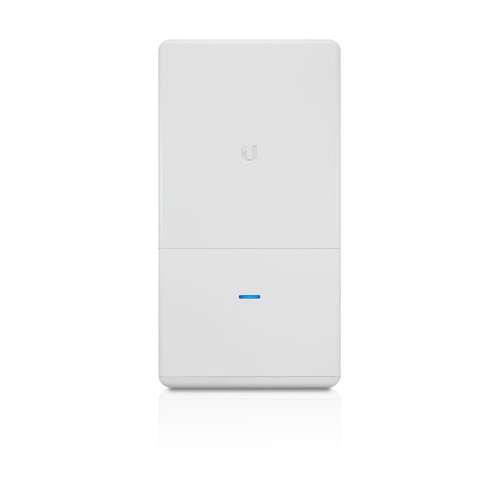

Ubiquiti Unifi UAP‑AC Outdoor Wireless Access Point Branded

Key Specifications

Model	Ubiquiti Unifi UAP‑AC Outdoor
Wireless Standards	802.11a/b/g/n/ac
Frequency Bands	2.4 GHz and 5 GHz dual-band operation
Antenna Gain	2.4 GHz: 3 dBi, 5 GHz: 6 dBi
Weather Resistance	IP67-rated weatherproof design
Ethernet Ports	1 x 10/100/1000 Ethernet port
Power Method	Passive PoE (24V)
Maximum Power Consumption	6.5W
Maximum TX Power	2.4 GHz: 22 dBm, 5 GHz: 22 dBm
BSSID	Up to four per radio
Wi-Fi Security	WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)
Mounting	Wall or pole mount (mounting kit included)

Model

Ubiquiti Unifi UAP‑AC Outdoor

Wireless Standards

802.11a/b/g/n/ac

Frequency Bands

2.4 GHz and 5 GHz dual-band operation

Antenna Gain

2.4 GHz: 3 dBi, 5 GHz: 6 dBi

Weather Resistance

IP67-rated weatherproof design

Ethernet Ports

1 x 10/100/1000 Ethernet port

Power Method

Passive PoE (24V)

Maximum Power Consumption

6.5W

Maximum TX Power

2.4 GHz: 22 dBm, 5 GHz: 22 dBm

BSSID

Up to four per radio

Wi-Fi Security

WEP, WPA-PSK, WPA-Enterprise (WPA/WPA2, TKIP/AES)

Mounting

Wall or pole mount (mounting kit included)

Description

The Ubiquiti Unifi UAP‑AC Outdoor Wireless Access Point is the ideal solution for extending your wireless network outdoors. Its rugged and weather-resistant design ensures reliable performance in various weather conditions, making it suitable for outdoor deployments such as parks, campgrounds, and outdoor venues.

Key Features:

Weather-Resistant Design: The UAP-AC Outdoor is built to withstand outdoor conditions, featuring weather-resistant housing and UV stabilization for long-term durability.
802.11ac Technology: It supports the latest 802.11ac Wi-Fi standard, offering faster wireless speeds and improved performance for outdoor environments.
Dual-Band Operation: The access point operates on both 2.4GHz and 5GHz bands, providing flexibility and reducing interference.
Long-Range Coverage: With its high-power, long-range antenna, it can cover a large outdoor area with a strong Wi-Fi signal.
Scalable Solution: The UniFi Controller software allows easy management and scalability, making it ideal for deployments ranging from small outdoor setups to large networks.
PoE Support: It supports Power over Ethernet (PoE), simplifying installation by combining data and power over a single Ethernet cable.
Multiple SSIDs: Create multiple SSIDs with different security policies and VLANs to segregate and manage network traffic effectively.
Guest Portal/Hotspot Support: Offer guest Wi-Fi access with a customizable captive portal, providing secure and controlled guest networking.
Advanced Security: Features like WPA/WPA2 encryption and advanced firewall policies enhance network security. (Ubiquiti Unifi UAP‑AC)
Real-Time Statistics: Monitor network performance with real-time statistics, traffic analysis, and client activity insights through the UniFi Controller.
