Cisco WS-C3560G-24TS-S 24-Port Gigabit Layer 3 Managed Switch | 4× SFP Uplink | IP Base Enterprise Switch

Description

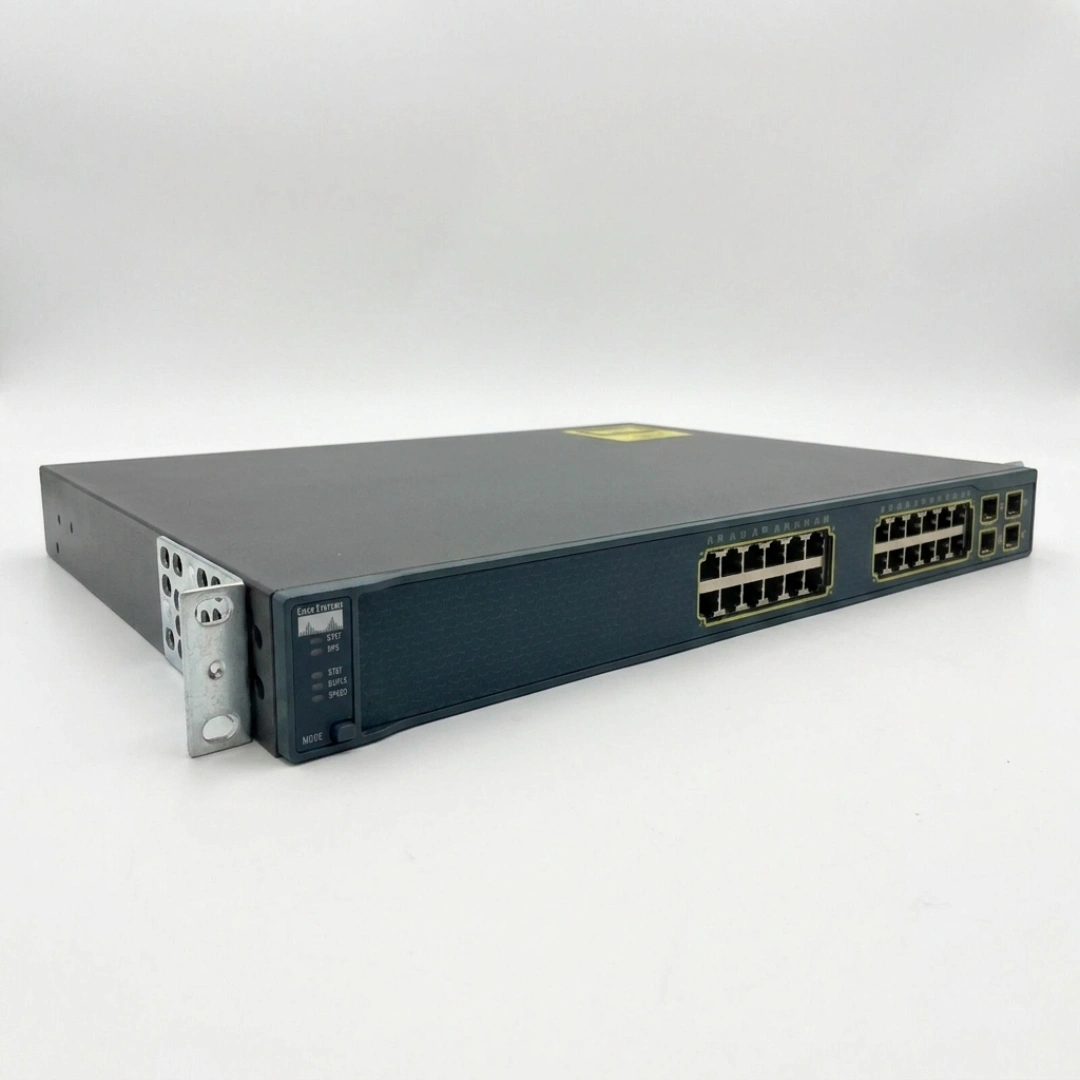

Cisco WS-C3560G-24TS-S 24-Port Gigabit Layer 3 Managed Switch | 4× SFP Uplink

The Cisco WS-C3560G-24TS-S is an enterprise-grade Layer 3 managed switch designed for secure and reliable business network deployments. Part of the trusted Cisco Catalyst 3560G Series, this switch provides advanced switching performance, intelligent network services, and basic Layer 3 routing capabilities through the Cisco IOS IP Base software image.

It features 24 Gigabit Ethernet ports along with 4 Gigabit SFP uplink ports, enabling high-speed connectivity for enterprise access, aggregation, and backbone network applications. The switch supports multiple Cisco SFP transceivers including 1000BASE-SX, LX, ZX, BX, FX, and CWDM, providing flexible fiber connectivity options for different network environments.With a 32 Gbps switching matrix and 38.7 Mpps forwarding rate, the WS-C3560G-24TS-S delivers stable traffic handling and reliable performance for office networks, branch deployments, and enterprise infrastructures. The switch supports basic Layer 3 routing features such as static routing, RIP, EIGRP stub, and PIM stub, with upgrade capability to IP Services for full dynamic routing support.

The switch includes support for jumbo frames up to 9,018 bytes, configurable MTU up to 9,000 bytes, and a 12,000-entry MAC address table for efficient traffic management and scalability. Powered by 128 MB DRAM and 32 MB flash memory, it offers dependable operation for critical networking tasks.Designed in a compact 1U rack-mountable form factor, the Cisco WS-C3560G-24TS-S is ideal for enterprise racks, offices, educational institutions, and professional IT environments requiring high-speed Layer 3 switching and reliable Gigabit connectivity.

Key Features

• 24 Gigabit Ethernet ports for high-speed LAN connectivity
• 4 Gigabit SFP uplink ports for fiber backbone integration
• Enterprise-class Layer 3 managed switch with Cisco IOS IP Base
• Supports static routing, RIP, EIGRP stub, and PIM stub
• Upgradeable to IP Services for advanced dynamic routing features
• Compatible with multiple Cisco 1000BASE SFP transceivers
• High-performance switching with 32 Gbps switching matrix
• 38.7 Mpps forwarding rate for efficient packet processing
• Supports jumbo frames up to 9,018 bytes
• Advanced scalability with 12,000 MAC addresses and 11,000 routes
• Compact 1U rackmount design for enterprise deployments
• Reliable hardware with 128 MB DRAM and 32 MB Flash memory
