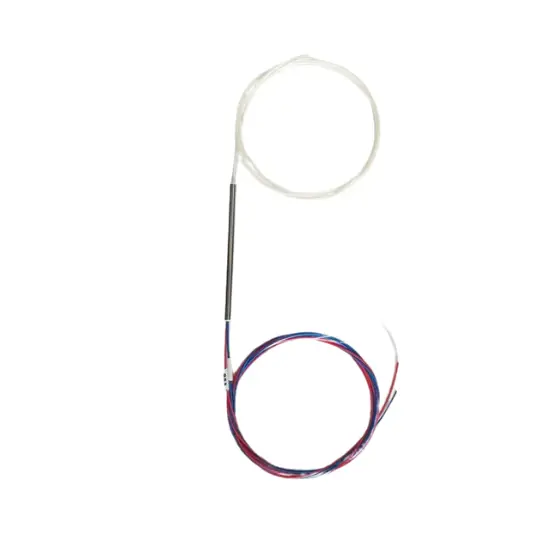

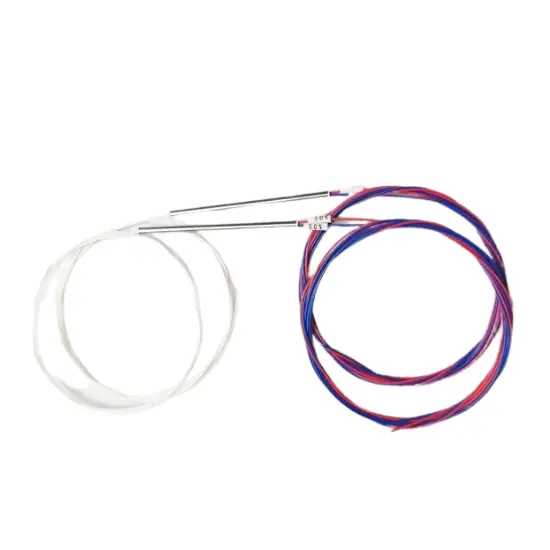

1x2 FBT Fiber Splitter Module Triple Window 1310/1490/1550 Nm

Key Specifications

Channel Number	1×2 or 2×2
Operating Wavelength (nm)	1310, 1550, 1310/1550, 1310/1550/1490
Operating Bandwidth (nm)	±40
Coupling Ratio / Coupling Ratio Insertion Loss (dB)	P Grade: 50/50: ≤3.3 / ≤3.5 40/60: ≤4.5 / ≤2.6 (Input 1 / Input 2) 30/70: ≤5.7 / ≤1.9 (Input 1 / Input 2) 20/80: ≤7.6 / ≤1.3 (Input 1 / Input 2) 10/90: ≤10.85 / ≤0.68 (Input 1 / Input 2) 5/95: ≤14.4 / ≤0.45 (Input 1 / Input 2) 2/98: ≤18.5 / ≤0.6 (Input 1 / Input 2) 1/99: ≤21.8 / ≤0.28 (Input 1 / Input 2) A Grade: Same as P Grade but with slightly higher insertion loss values
P Grade	50/50: ≤3.3 / ≤3.5 40/60: ≤4.5 / ≤2.6 (Input 1 / Input 2) 30/70: ≤5.7 / ≤1.9 (Input 1 / Input 2) 20/80: ≤7.6 / ≤1.3 (Input 1 / Input 2) 10/90: ≤10.85 / ≤0.68 (Input 1 / Input 2) 5/95: ≤14.4 / ≤0.45 (Input 1 / Input 2) 2/98: ≤18.5 / ≤0.6 (Input 1 / Input 2) 1/99: ≤21.8 / ≤0.28 (Input 1 / Input 2)
50/50	≤3.3 / ≤3.5
40/60	≤4.5 / ≤2.6 (Input 1 / Input 2)
30/70	≤5.7 / ≤1.9 (Input 1 / Input 2)
20/80	≤7.6 / ≤1.3 (Input 1 / Input 2)
10/90	≤10.85 / ≤0.68 (Input 1 / Input 2)
5/95	≤14.4 / ≤0.45 (Input 1 / Input 2)
2/98	≤18.5 / ≤0.6 (Input 1 / Input 2)
1/99	≤21.8 / ≤0.28 (Input 1 / Input 2)
A Grade	Same as P Grade but with slightly higher insertion loss values Same as P Grade but with slightly higher insertion loss values
Polarization Dependent Loss (PDL) (dB)	≤0.15 (P Grade) ≤0.2 (A Grade) ≤0.15 (P Grade) ≤0.2 (A Grade)
Directivity (dB)	≥50
Return Loss (dB)	≥55 (into points)

Channel Number

1×2 or 2×2

Operating Wavelength (nm)

1310, 1550, 1310/1550, 1310/1550/1490

Operating Bandwidth (nm)

±40

Coupling Ratio / Coupling Ratio Insertion Loss (dB)

P Grade: 50/50: ≤3.3 / ≤3.5 40/60: ≤4.5 / ≤2.6 (Input 1 / Input 2) 30/70: ≤5.7 / ≤1.9 (Input 1 / Input 2) 20/80: ≤7.6 / ≤1.3 (Input 1 / Input 2) 10/90: ≤10.85 / ≤0.68 (Input 1 / Input 2) 5/95: ≤14.4 / ≤0.45 (Input 1 / Input 2) 2/98: ≤18.5 / ≤0.6 (Input 1 / Input 2) 1/99: ≤21.8 / ≤0.28 (Input 1 / Input 2) A Grade: Same as P Grade but with slightly higher insertion loss values

P Grade

50/50: ≤3.3 / ≤3.5 40/60: ≤4.5 / ≤2.6 (Input 1 / Input 2) 30/70: ≤5.7 / ≤1.9 (Input 1 / Input 2) 20/80: ≤7.6 / ≤1.3 (Input 1 / Input 2) 10/90: ≤10.85 / ≤0.68 (Input 1 / Input 2) 5/95: ≤14.4 / ≤0.45 (Input 1 / Input 2) 2/98: ≤18.5 / ≤0.6 (Input 1 / Input 2) 1/99: ≤21.8 / ≤0.28 (Input 1 / Input 2)

50/50

≤3.3 / ≤3.5

40/60

≤4.5 / ≤2.6 (Input 1 / Input 2)

30/70

≤5.7 / ≤1.9 (Input 1 / Input 2)

20/80

≤7.6 / ≤1.3 (Input 1 / Input 2)

10/90

≤10.85 / ≤0.68 (Input 1 / Input 2)

5/95

≤14.4 / ≤0.45 (Input 1 / Input 2)

2/98

≤18.5 / ≤0.6 (Input 1 / Input 2)

1/99

≤21.8 / ≤0.28 (Input 1 / Input 2)

A Grade

Same as P Grade but with slightly higher insertion loss values Same as P Grade but with slightly higher insertion loss values

Polarization Dependent Loss (PDL) (dB)

≤0.15 (P Grade) ≤0.2 (A Grade) ≤0.15 (P Grade) ≤0.2 (A Grade)

Directivity (dB)

≥50

Return Loss (dB)

≥55 (into points)

Description

The 1×2 FBT Fiber Splitter Module (1310/1490/1550 Nm) is a compact and versatile device designed to split incoming optical signals into two separate output paths with minimal signal loss. Utilizing fused biconical taper (FBT) technology, this splitter module operates effectively across multiple wavelengths, including 1310nm, 1490nm, and 1550nm, making it suitable for various fiber optic communication applications. Its modular form factor and robust construction enable easy integration into existing optical systems, providing efficient signal distribution and management.

Key Features:

Triple Window Operation: Supports multiple wavelengths including 1310nm, 1490nm, and 1550nm, ensuring compatibility with different types of optical signals commonly used in telecommunications networks, including GPON (Gigabit Passive Optical Network).
Low Insertion Loss: Minimizes signal attenuation during splitting, preserving signal strength and integrity across the output paths, thereby maintaining optimal network performance.
High Splitting Ratio: Efficiently divides the input optical signal into two output paths with customizable splitting ratios, allowing for flexible configuration to meet specific network requirements.
Wide Bandwidth: Provides broad bandwidth support across the operating wavelengths, facilitating the transmission of high-speed data, voice, and video signals over fiber optic networks.
Compact Module Design: Space-saving module form factor enables easy installation and integration into optical distribution frames (ODFs), cabinets, or other network infrastructure components.
Superior Stability: Constructed using high-quality materials and advanced manufacturing techniques, ensuring long-term stability and reliability in diverse environmental conditions.
Plug-and-Play Compatibility: Simple and intuitive plug-and-play design facilitates quick and hassle-free installation, reducing deployment time and minimizing operational disruptions.
Versatile Applications: Suitable for various fiber optic communication applications including FTTH (Fiber to the Home), CATV (Cable Television), enterprise networks, and data centers, among others.

These key features make the 1×2 FBT Fiber Splitter Module (1310/1490/1550 Nm)(Patch Cord) an essential component in modern fiber optic networks, enabling efficient signal splitting and distribution while maintaining signal quality and reliability across different wavelengths.
